Carbon ceramic brake disc
Category:
Carbon Ceramic Brake Disc
Product description
High Reliable Carbon Ceramic Brake Disc ,Supports Variety Car Models
Model No:YX-GT
Product size :
335×32mm Carbon ceramic brake disc
360x36mm Carbon ceramic brake disc
380x28mm Carbon ceramic brake disc
380x34mm Carbon ceramic brake disc
390x32.6mm Carbon ceramic brake disc
398x36mm Carbon ceramic brake disc
Product description:
YUXUNION Carbon ceramic brake system (GT Version), the 3rd generation of LCCM carbon-ceramic composite material production process uses Japanese or American T700-6000 high-grade carbon fiber as raw materials, with 24 fan-shaped ventilation holes design, which is lighter in weight and better in heat dissipation. It is integrated with BREMBO GT or APRACING 5000+ series. The use of calipers and carbon-ceramic composite brake pads can effectively improve the performance of the braking system and the safety performance of the vehicle, and meet the braking needs of the vehicle from the street to the track.

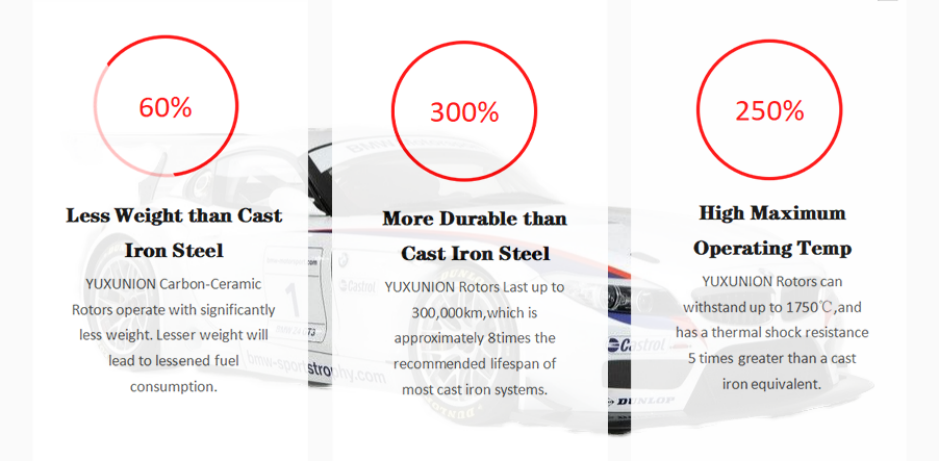

Steel VS Carbon-Ceramic:
Specifications:
|
Physical Property |
Unit |
YUXUNION Brake Disc C/Sic (Continuous Fiber) |
|
Density |
g cm-3 |
1.8～2.1 |
|
Tensile Strength |
M Pa(N mm-2) |
80～120 |
|
Tensile Modulus |
GPa |
60 |
|
Flexural strength |
MPa=(N mm-2) |
100～160 |
|
Elongation rate at break |
% |
0.3 |
|
Thermal Shock Reaistance |
Wm-1 |
>27.000 |
|
Thermostability |
℃ |
1350 |
|
Max Operating Temp |
℃ |
1750 |
|
Linear CTE |
×10-6/K-1 |
2.6 |
|
Thermal Conductivity |
Wm-1/K-1 |
60 |
|
Specific Heat Capacity(CP) |
KJkg-1/K1 |
1.2 |
